Mechanical Anchors
Sup-R Bolt Mechanical Anchoring System
High-strength hex bolt for high strength concrete
AVAILABLE MATERIALS- High Strength Steel
- Required hole diameter equals anchor diameter
- Designed for standard ANSI tolerance drill bits
- Hardened threads for tapping high strength concrete
- Anti-rotation teeth on underside of hex washer head lock against the fixture
- Can be installed closer to the edge than traditional expansion anchors
- Fast installation with powered impact wrench
- Diameter, length and identifying marking stamped on the head of each anchor
- One-piece, finished head design
- Equipment can be removed.
- Able to resist seismic loads.
- Do not use it in brick or block
- Do not reuse
- ICC-ES ESR 4347 except 3/4” x 4” size
- ACI 318 category 1 for cracked concrete
Sizes:
ICC Report
Data sheet

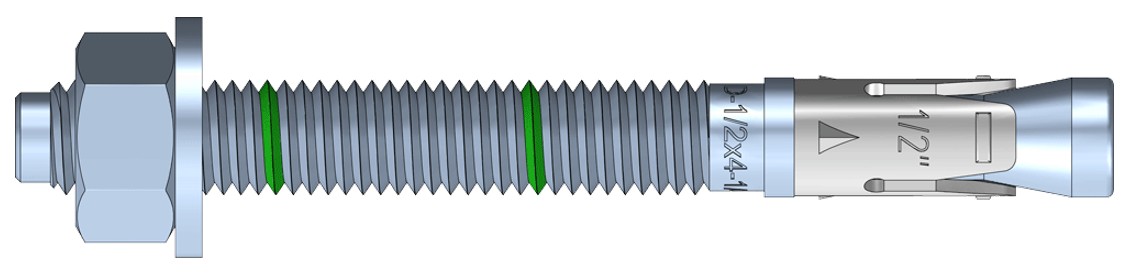

Sup-R Stud V-TZ mechanical anchoring system
AVAILABLE MATERIALS- Carbon steel, zinc plated
- Carbon steel clip, sheradized
- ACI 318 category 1 anchor for cracked or uncracked concrete
- Suitable for resisting seismic design loads
- Required hole diameter equals anchor diameter
- Can be loaded immediately
- Simple to install
- For medium to heavy loads
- Hole diameter is critical
- Concrete only
- ACI 318 Category 1 for cracked concrete
- ICC-ES ESR 4278
- Contact customer service for approvals / listings for state DOT’s
Sizes:
ICC Report
Data sheet
Sup-R Stud + mechanical anchoring system
AVAILABLE MATERIALS- Carbon steel, zinc plated
- Carbon steel, mechanically galvanized Class 65
- Grade 5, yellow di-chromated
- 303/304 stainless steel
- 316 stainless steel
- Required hole diameter equals anchor diameter
- Excellent for setting immediately - Can be loaded immediately
- Can be set in a bottomless hole - Simple installation
- Nut and washer supplied in package––
- ROHS compliant except for Grade 5
- Do not use it in brick or block
- Not advised for use where vibratory loads are high
- Oversize holes are detrimental and will reduce load performance
- G.S.A. Spec A-A-1923A, CID TYPE 4
- ICC ESR-3782 C-STL, ZP 1/4” SS
- Contact customer service for approvals / listings for state D.O.T.’s
Sizes:
ICC Report
Data sheet
Sup-R Drop mechanical fastening system
AVAILABLE MATERIALS- Carbon steel, zinc plated
- 304 stainless steel
- 316 stainless steel
- Ideal for flush-mounting applications
- Preassembled for ease of installation
- Female threads accept standard UNC bolts or threaded rods (1/4” to 3/4”)
- Slotted body is precision-matched to tapered internal plug for uniform expansion
- Knurled body increases friction connection between anchor and wall of hole
- Dead load only
- Hole depth must be equal to anchor length
- Do not over torque
- G.S.A. Spec A-A-55614
- UL listed 3/8" - 3/4"
- FM 3/8" - 1/2" & 3/4"
- Contact customer service for approvals
Sizes:
Sup-R Drop Setting Tool Sizes:
Data sheet
