Vibration Isolation
The Gripple range of vibration and noise isolation products provide a fast and versatile solution for all types of nonstructural equipment.
Suspended Vibration Isolation Spring (CD-CH)
- CH 1” Deflection Hangers are specially reinforced for extra strength
- The pre-compression rod is furnished with units which have the “R” option; rod diameter must be specified. This rod will extend about 3” below the bottom of the hanger housing.
- MRD: Rod, Nuts and Washers are by others.
- Minimum additional travel 50% of required deflection at rated load.
- Zinc Finish for Light Weight and Basic Hanger.
- Black Primer Lacquer for the Extra Strength Hanger.
- Dimensions are in inches.
Suspended Vibration Isolation Spring (CD-CH30)
- CH30 1” Deflection Hangers are used where uncertain alignment is anticipated during installation. At normal load the hanger rod will operate to a full 15° tilt in any direction from Vertical Centerline.
- The Extra Strength Hanger housings are specially reinforced for extra strength.
- All housing sizes have been tested to carry 5 times maximum load without failure.
- The pre-compression rod is furnished with units which have the “R” option; specify rod diameter. This rod will extend about 3” below the Neoprene sleeve.
- MRD: Rod, Nuts and Washers by others.
- Zinc plated finish for the Light Weight Hanger and the Basic Hanger.
- Black primer lacquer finish for the Extra Strength Hanger.
- Dimensions are in inches.
Suspended Vibration Isolation - Neoprene (RH and RHD)
- RH and RHD
- Threaded Rods, Nuts, and Washers are not furnished unless specified in quotation or order.
- Housing finish zinc plated
- TYPE RH: Single Deflection (1/4” maximum)
- TYPE RHD: Double Deflection (1/2” maximum)

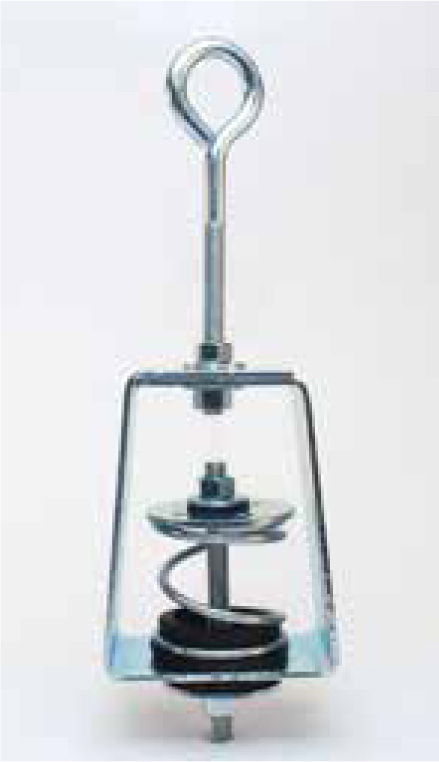

Suspended Vibration Isolation - Spring & Neoprene (HH30)
- HH30 hangers are used where uncertain alignment is anticipated during installation. At normal load the hanger rod will operated to a full 15° tilt in any direction from Vertical Centerline.
- Rated Deflection is 1” + 1/2” Neoprene rated Deflection = 1-1/2”.
- The Extra Strength Hanger housings are specially reinforced for extra strength.
- All housing sizes have been tested to carry 5 times maximum load without failure.
- The pre-compression rod is furnished with units which have the “R” option; specify rod diameter. This rod will extend about 3” below the Neoprene sleeve.
- MRD: Rod, Nuts and Washers by others.
- Zinc Plated Finish for the Basic Hanger.
- Black Primer Lacquer Finish for the Extra Strength Hanger.
- Dimensions are in inches.
